HomeTech SupportImpedance Calculation

Tech Support

Impedance Calculation

Tech Support Topics ☰

AWG to Square mm Conversion Braid Shield Calculation Cable Handling System Cable Installation Procedure Cable Life Calculation Cable Size Calculation for Automotive Cable Cable Size Selection for Solar PV Plants Capacitance Calculation Color Code Chart Comparison Chart of PTFE, FEP, PFA, ETFE Conductor Resistance Calculation Current Carrying Capacity Calculation Derating Factors Electrical Losses Calculation Impedance Calculation Inductance Calculation Insulation Resistance Calculation NFPA Electrical Safety Standard Packaging of Wires and Cables Publication Reactance Calculation Short Circuit Temperature Rating Calculation Toxicity Index Calculation Voltage Drop Calculation White Paper: Electron-Beam Crosslinking White Paper: Accelerated Ageing & Cable Life

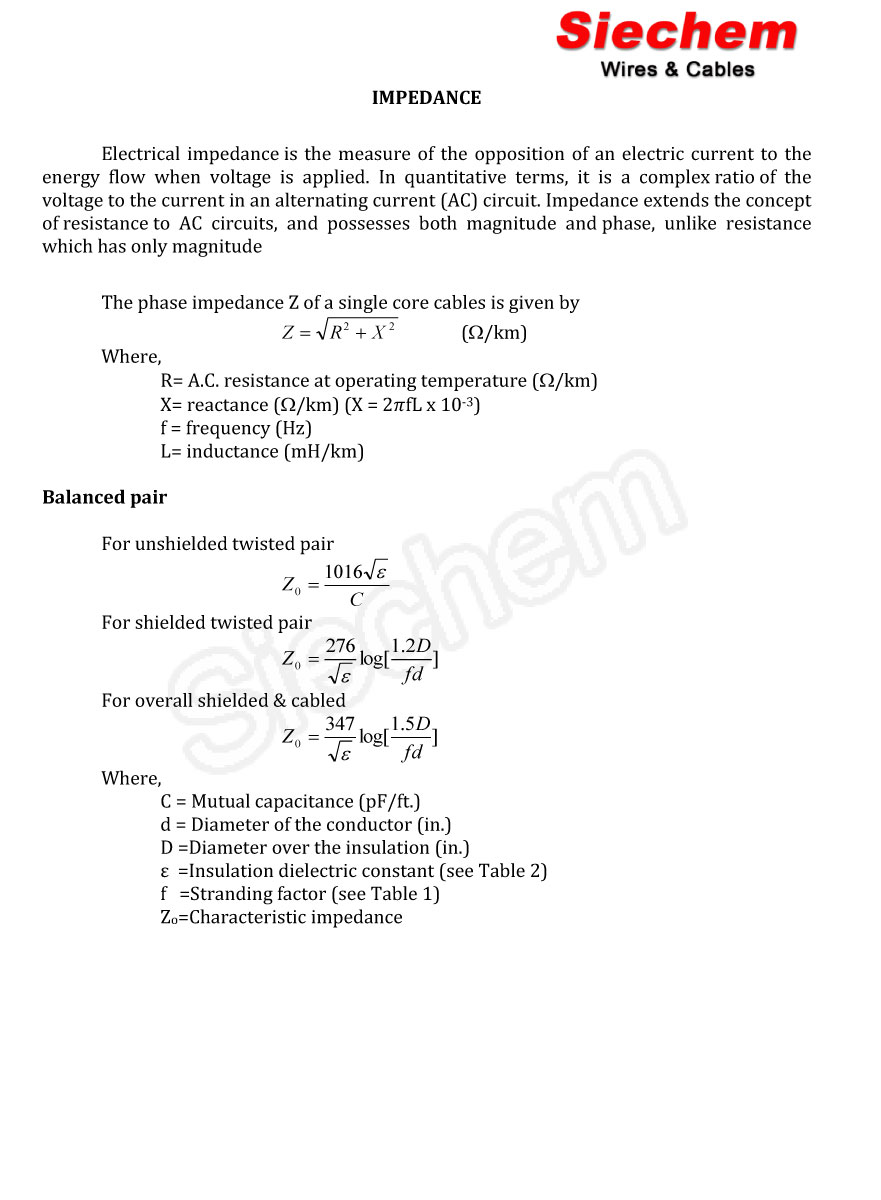

Impedance Calculation — page 1

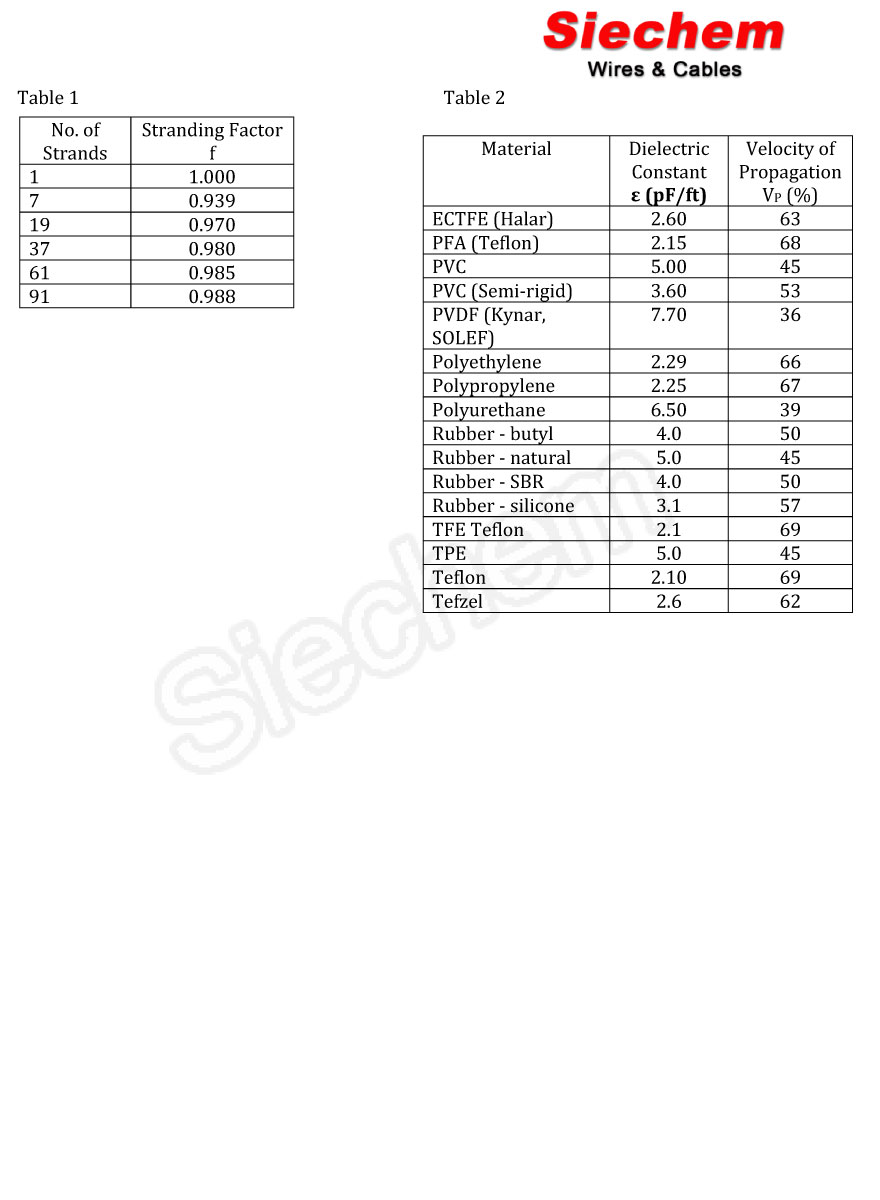

Impedance Calculation — page 2
